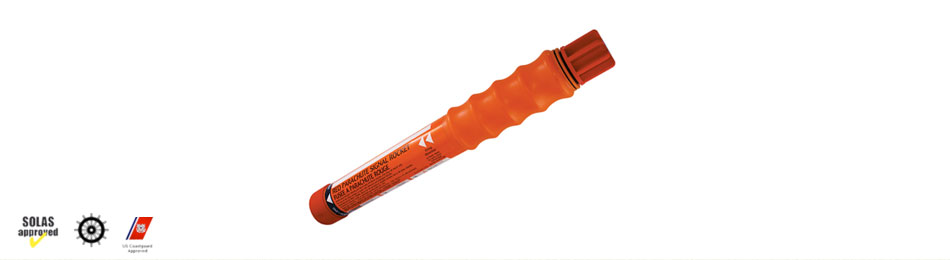

Parachute Rocket Red
Product Code: 9163100 IMPA No. 331361
MED + SOLAS. Approved distress signalling parachute rocket
Long range, day and night distress signalling rocket. Designed to withstand exceptional environmental exposure and to perform reliably even after immersion in water. Features improved grip for easy handling and conforms to SOLAS 74/88 as amended. Rocket propels a red flare attached to a parachute to 300m and burns for 40 seconds. SOLAS requires that 12 rockets are carried on Ships Bridge and 4 rockets are fitted in liferafts and lifeboats. Also used by leisure craft.
Specifications
| Length | 295mm (11.6") |
| Diameter | 32mm (1.3") |
| Diameter at Handle | 38mm (1.5") |
| Weight | 270g (9.5 oz) |
| Altitude | 300m (984 ft) |
| Net Explosive Content | 84g (3.0 oz) |
| Light Colour | Red |
| Light Burn Time (Min.) | 40 Seconds |
Operation
| When To Use |
| For use in day and night long range distress signal situations. To fire: Unscrew red end cap. Hold securely at arms length, vertically above head, turn head away and pull toggle. Rocket is ejected instantaneously with a loud report and slight recoil. Ensure that rocket is not aimed at people or property. |
| Storage Requirements |
| Ideally should be stored in the robust, specially designed polybottle, or in a dry, easily accessed location at ambient temperature. |
| Disposal |
| Hazardous item! Dispose of responsibly through approved channels in |
Documents
 Certificate of Approval (Singapore) |
| EC Certificate |
| MED Module D (European Union) |
| USCG |
| Material Safety Datasheet (MSDS) |
| Datasheet (Brochure) |
Packing
| Type | Metal Tin and Fibreboard Box |
| Maximum Quantity Per Pack | 60 |
| Pack Dimensions | 48 x 27 x 37 cm |
| Estimated Gross Weight | 16.5 kg |
| Estimated Net Weight | 14.1 kg |
| Net Explosive Content Per Pack | 5.04 kg |
| Hazard Class | 1.4G |
| UN Number | UN0505: Signals, distress, ship |
| Transport Method | Road, Sea or Cargo Aircraft Only |
